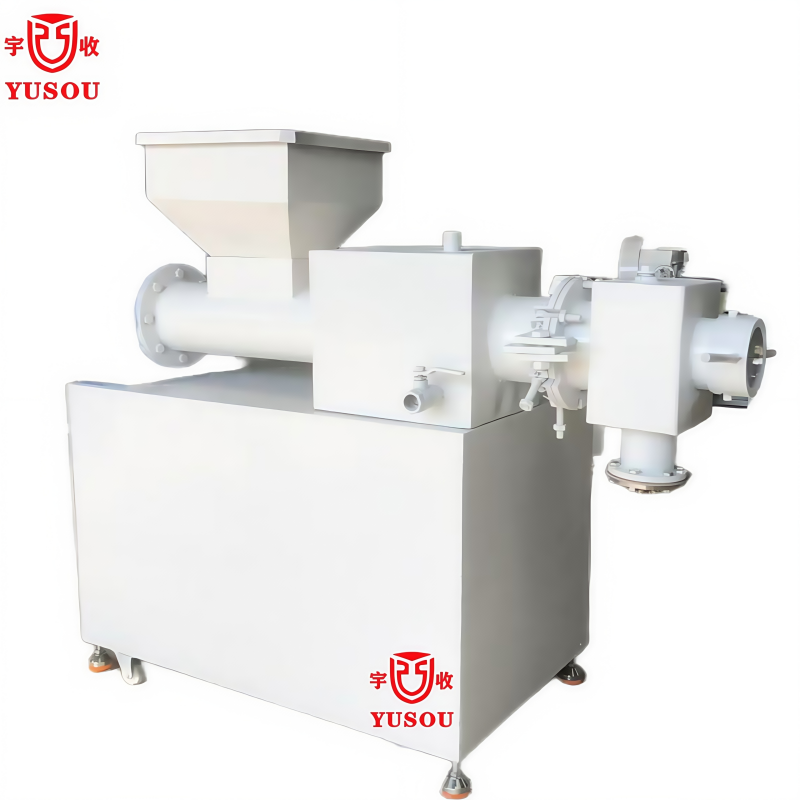

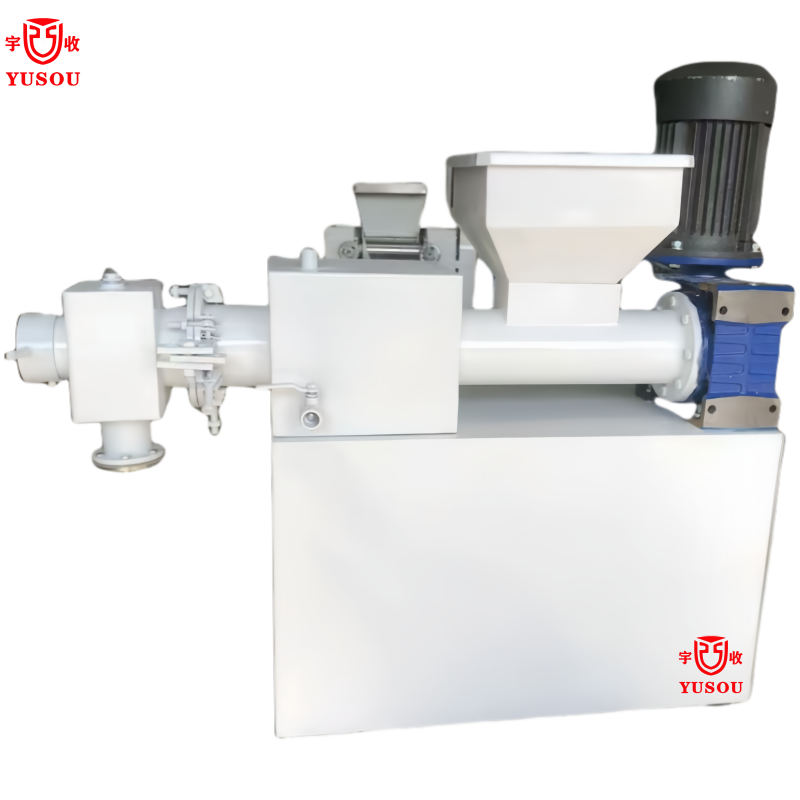

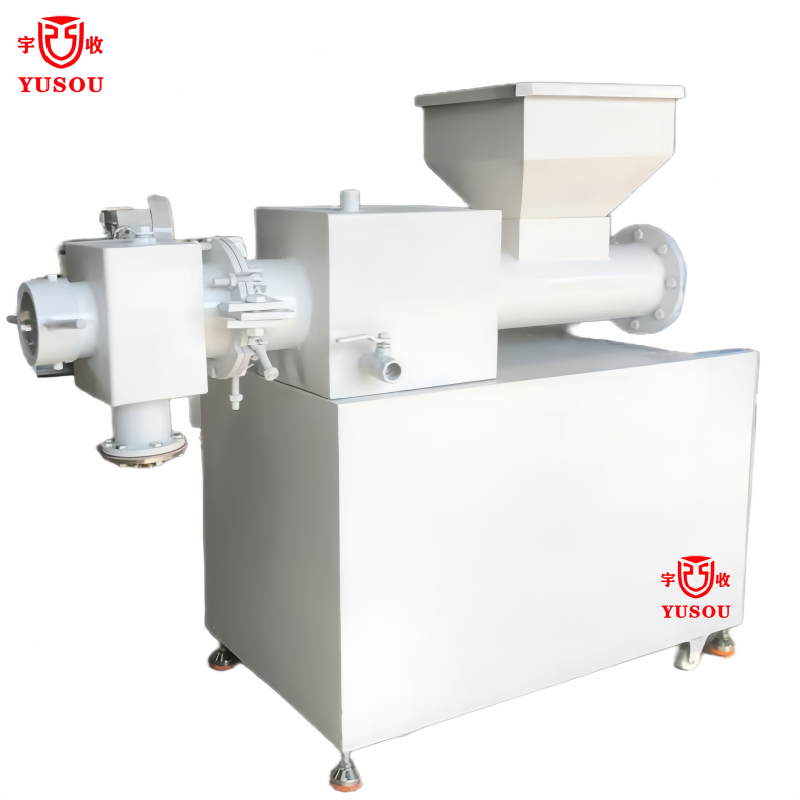

Single Worm Plodder
出条机是将搅拌和研磨好了的皂片、细短条、皂粉等制皂原料挤揉成连续的塑性条状皂体,供打印机打印成形。
本机采用单联单螺旋出条,由变频调速电动机驱动,调速范围广,能很好配合打印。出条口设有控温的电
加热装置,保证皂体具有***的内部强度和良好的外观质量。
The plodder machine is to make those mix and grind the soap pieces, thin strips, soap powder and other soap raw materials into a continuous soap bar for printer printing.
This machine adopts single worm strip shaft, driven by frequency conversion speed regulating motor, wide range of speed regulation, can be well matched with printing.
The outlet is provided with electric temperature control heating device to ensure that the soap has a certain internal strength and good appearance quality.
Main model
型号 Modle | 产量(kg/h) Capacity | 功率(kw) Power | 螺杆直径 Worm Dia (mm) | 螺杆转速 Shaft speed (RPM) |
DDCT-50 | 50 | 1.5 | 50 | 2-20 |
DDCT-90 | 100 | 2.2 | 90 | 2-20 |
DDCT-120 | 150-200 | 3 | 120 | 2-20 |
DDCT-150 | 250-300 | 4 | 150 | 2-20 |
DDCT-180 | 350-400 | 5.5/7.5 | 180 | 2-18 |
