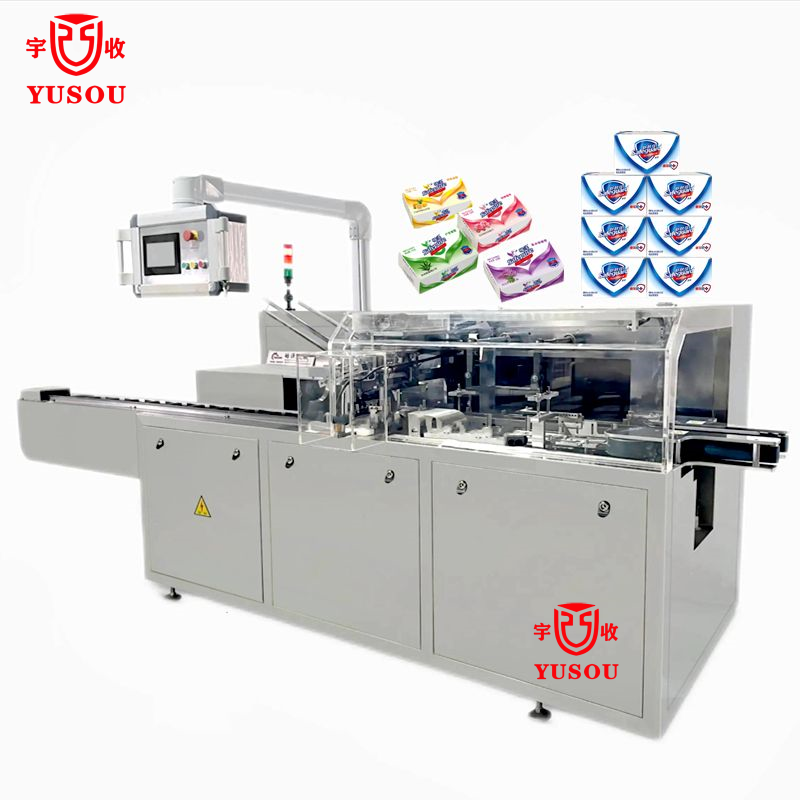

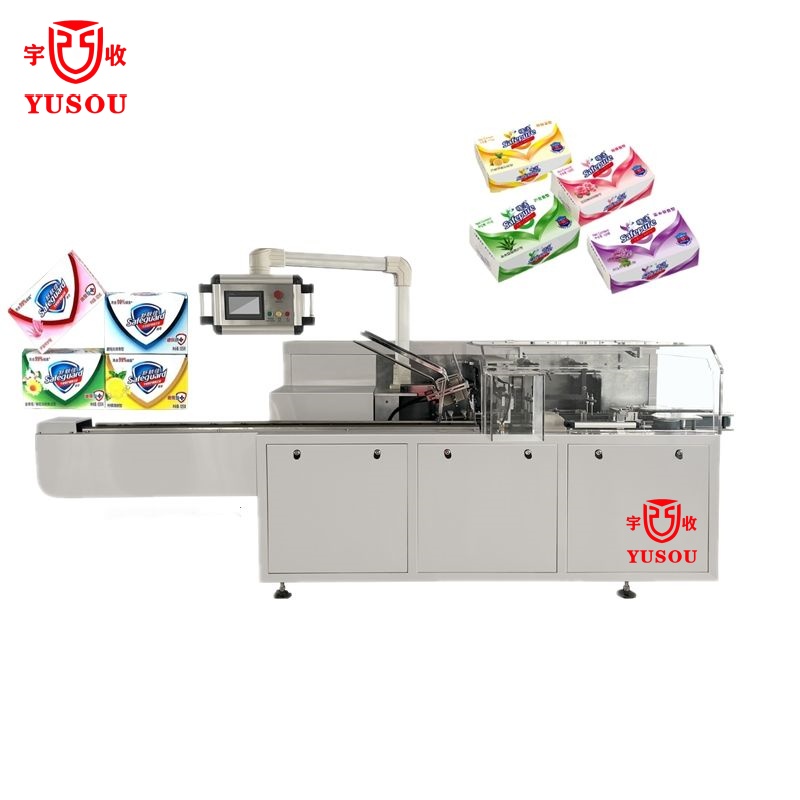

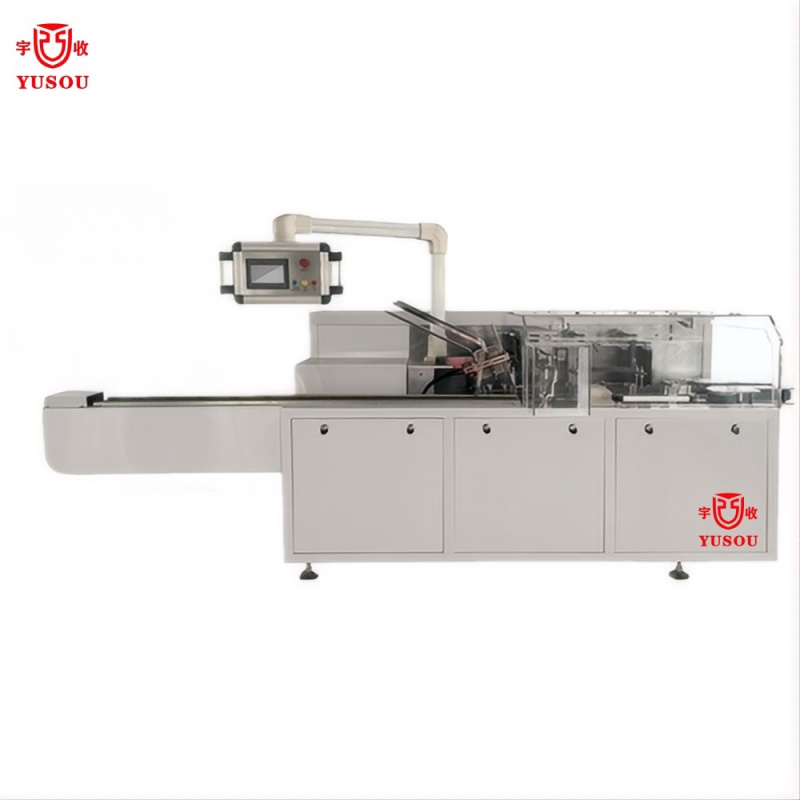

主要应用于食品、药品、香皂和化妆品的硬纸盒全自动包装。具有喷胶或插舌两种形式。
特点:
1. 中英文显示屏可方便地进行参数调整,操作方便。
2.PLC控制精度高,响应速度快,性能稳定。
3.喷胶温度靠温控仪自动控制,调整方便。
Mainly used in food, medicine, soap and cosmetics cardboard box automatic packaging. It has two forms of spray glue or tongue insertion.
Characteristics:
1. Chinese and English display can easily adjust the parameters and operate conveniently. High
2.plc control accuracy, fast response speed and stable performance.
3. spray temperature by temperature control instrument automatic control, easy to adjust.
主要参数Main model
型 号Model | ZHJ-200 |
包装速度(盒/分钟) packing speed(box/min) | 200-230 |
包装尺寸 cardbox size (mm) | (75-200)*(25-75)*(25-55) |
功率power (kw) | 3.5 |
压缩空气air (MPa) | 0.5-0.6 |
真空度vacuum(Mpa) | -0.06 |
外形尺寸size (mm) | 3600*1300*2400 |
重 量weight(kg) | 2600 |
